Metasploitable 3

The Jack of Diamonds

This card is broken, remember my post about Broken Flags?

Anyway, this one is pretty interesting because I’ve never seen this case before.

If you remember, in my post about the Queen of Hearts I spotted a file called jack_of_diamonds.png in the root of the C:\ drive with a zero (0) size.

C:>dir dir Volume in drive C is Windows 2008R2 Volume Serial Number is 1475-561C

Directory of C:\

11/25/2016 07:33 PM

glassfish 11/25/2016 07:25 PM inetpub **11/25/2016 07:54 PM 0 jack_of_diamonds.png** 11/25/2016 07:50 PM 103 java0.log 11/25/2016 07:50 PM 103 java1.log 11/25/2016 07:50 PM 103 java2.log 11/25/2016 07:48 PM ManageEngine 11/25/2016 07:37 PM openjdk6 07/13/2009 07:20 PM PerfLogs 11/25/2016 07:53 PM Program Files 11/25/2016 07:48 PM Program Files (x86) 11/25/2016 07:54 PM tmp 11/25/2016 07:38 PM tools 11/25/2016 07:25 PM Users 11/25/2016 07:32 PM vagrant [\\\\vboxsrv\\vagrant] 11/25/2016 07:36 PM wamp 11/25/2016 07:54 PM Windows 10/07/2015 06:22 PM 226 \__Argon\_\_.tmp 5 File(s) 535 bytes 13 Dir(s) 48,041,852,928 bytes free

Some times a simple DIR command doesn’t show all the information about the files we are looking at, and certainly it doesn’t show hidden files. In this case we need to look at other attributes of the files.

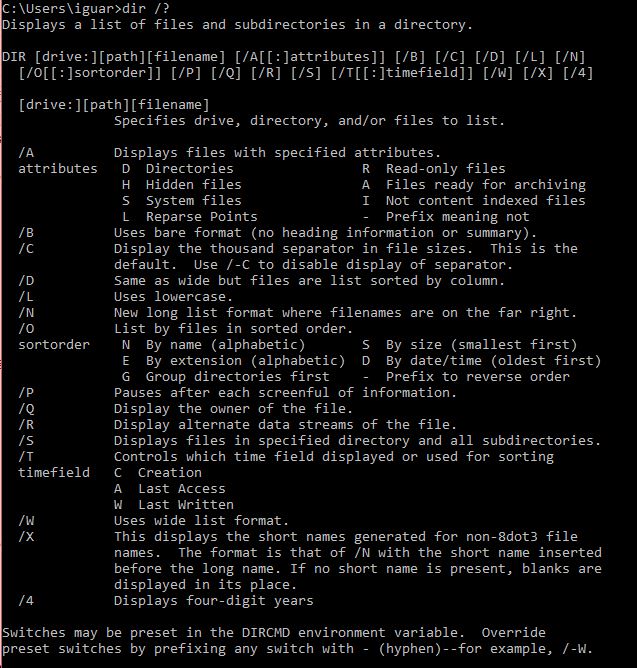

This is the output of DIR /? showing other options we have:

DIR /?

The /R option seemed interesting, it shows alternative data streams of the file, what’s that?

I didn’t know there was such a thing, (haven’t finish that book I bought about malware 😞) and now I know this is specific for NTFS filesystems

Here’s a link from Microsoft explaining what it is.

So, if we run a DIR /R on the jack_of_diamonds.png file we get:

C:>dir /R jack_of_diamonds.png

 Volume in drive C is Windows 2008R2

 Volume Serial Number is 1475-561C

 Directory of C:\

12/15/2016  07:48 PM                 0 jack_of_diamonds.png

                                 8,191 jack_of_diamonds.png:jack_of_diamonds.txt:$DATA

               1 File(s)              0 bytes

               0 Dir(s)  51,540,779,008 bytes free

C:>

And there’s the alternative data stream, but the size seems too small compared with other text formats.

To extract it we can just use a more command, we can also use the Get-Item cmdlet from PowerShell.

C:>more < jack_of_diamonds.png:jack_of_diamonds.txt:$DATA

iVBORw0KGgoAAAANSUhEUgAAAgkAAALZCAYAAAA9XLLXAAAACXBIWXMAABcRAAAXEQHKJvM/AAAgAElEQVR42uy9Waxl6XUe9u29/z2e+Zw71q2hq0ey1RQpUoIGm4IVS7IUSKaTOAkMGLCflAc9WA9GnvSgQEkejBiggUSCCBihJSQwFMqxYg2JTEoUZYviIFKcutns6u6qrqpbdzr3jHue8vB/6+yzm3YiWZRkkecHGrfr3nP2/vc/7bW+9a1vGXVd4y+yffbXf+67izz9oevpxXeH69n7LMvEan55POj3AQCu5QEAFqs1AEB19O/9bgcAEC2XAADLNPQFjQoAkBf6Z4efBwDHdgAAq1Bfy3GU/kw3AADYtg0ASJMIACBDs1qG+u+O/r7X9fXfoe9ZVWbzQJX+UlkUvIe+pm3peyVpovur2F9eoyhK/T1+XylX/2SfwnC5uYXv6THJ00zfQ+l+lbm+Z8nPRVmqPx/o/iqYfC79CcNiX6uK1/E39yirks/IfpX6Mxb0c+SZvvd41AMArMO5vibH32Efk5j34vx4djNWlqmvVdQyd/pvZV1xTHL9OcPgWOoxqUuTY2Tpe69XHCt9PcsymvkwZX3XXAN6PAuOlcXvgGNj2fqaeZ5tzQ5QVvrf7Bqq0mrGqqxb45yEEfuhPxPFsV7Lnp6notTP1e90W5+Ls7y1Fhzlbe6Rcz0pdteU23OyQ96z4qKVftYc95rPb/CJhoMxnzPf3COM9Dp3uS/KsuSzVq09W/PilqE7UVtOq98yarKfsqI5YxZXMwDAbHqu189kAAB46tlb7MOan+T6556Tvvi+395nslbQ9NHkOornel24rr7Ww8eP9Ae4bm7evMN143D5KX7f4B5O+TRVa/62nzXP9d8y7jXH1t81N+NuttZmmiV420ICAHS7+pwKs2asHMfn+ZJvrVDAMrlP2IflcqHXE89Mx3Va81aUGe+t11AQ9JrnYP9NngXyHcu0+Rz6c8u13t+ … etc

We can now store it in a file

C:>more < jack_of_diamonds.png:jack_of_diamonds.txt:$DATA > jack_of_diamonds.b64

I had to clean up the file before decoding it back to binary and add an ‘=’ to the end

…

jFj/+zD4TLJz85GA2wjhflnh9+zXOsSFufLEDCWNPb0YmDwz1a+/OWlSmWvrZPycxlrHh8eLN1LfHGTk6e0ZYV2Z6S3SAxvzE1EEp67otlk3cp8cubT92lU6itMGFQS+54UwCp7fVLnrJI3kp+e1k2XuWcrPeSXqR4lRK7ExRAvBp5vkgKo0i8ioiE8Af2Rp0G/pF+M0690TDgT/Fq6oJesGQJkJMgHp7EagOiBUnWRIsUc/xFLVDywm1auhPG4TNmSETM+BBURcasNtyWd+dt5WjbXDA11QzFMo/oQUtuP5QUgqFHRa9BtAokritFv0a9g2Y+Lpf06LKWNyzeY0gPtksUbLmaci0TIaEln8VJy672gqZw2IJ50EOiXpIxMbuYt70t122tf8dc0VvWY1LSo5KCULbbzHmaiPyh2erHRn6c+yMlT2VF9rbkvdv0QGyPHA2iSp7bsNBlziTu32Gc9mtf+apeg0QAb93Re/OcWQ9ffPk17s3jFqKyydPfOg5ERlnENOdcwwP5vRQBcvutdSfZT7JfRD1RCqYNxk3RItGnWMz1GIw5t6LPIplSQz6feMsb5MRrI1lmTW2QQZNtIh6n7MU+veQFM6IIisHiejM2KKDLdUVUhlyYBTUZhKUPAEOeZRYzvDYF0XjWyboSDYmI6IWE1YV3E1OjoTaEM9Lco0dU0TaEF8Rzi+eneLIFeUMxUQf^M

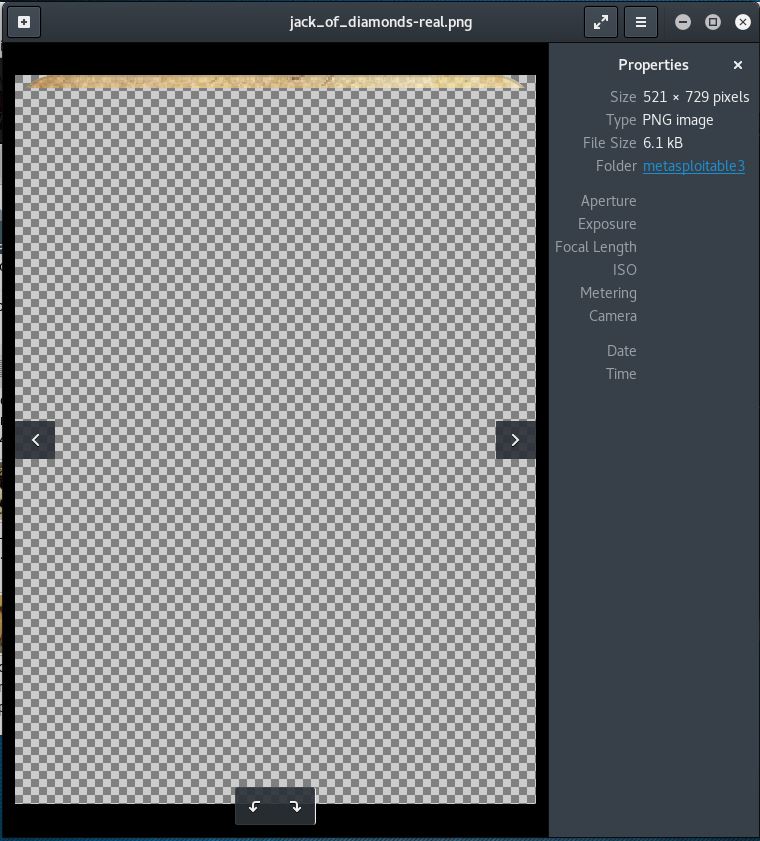

And then just use base64 to convert it into png, but as you know the flag is broken so the image, we only got the top part of the border, maybe because of the way the alternative data stream was built.

Broken Jack of Diamonds

And it’s supposed to look like this

Correct card

The issue with how this card was built is that the install_flags.bat tries to build it using an echo command of the whole base64 string into the alternative data stream, this not just doesn’t work, it also makes the install_flags.bat file hard to edit. To fix this, the team at Rapid7 could put the base64 content in a separate file and use the type command instead of echo in the install_flags.bat.

C:\Users\iguar\blog\metasplotable3>type jack_of_diamonds.b64 > jack_of_diamonds-test.png:jack_of_diamonds.txt

C:\Users\iguar\blog\metasplotable3>dir /r jack_of_diamonds-test.png

 Volume in drive C is Windows

 Volume Serial Number is 4085-5A70

 Directory of C:\Users\iguar\blog\metasplotable3

2017-01-05  11:57 AM                 0 jack_of_diamonds-test.png

                               834,089 jack_of_diamonds-test.png:jack_of_diamonds.txt:$DATA

               1 File(s)              0 bytes

               0 Dir(s)  675,664,252,928 bytes free

834,089 Bytes is the same size of the base64 text file.

---
